1 Ton Lodestar Motor

Rentals/Manufacturers/Rigging/CM

1 Ton Lodestar Motor.

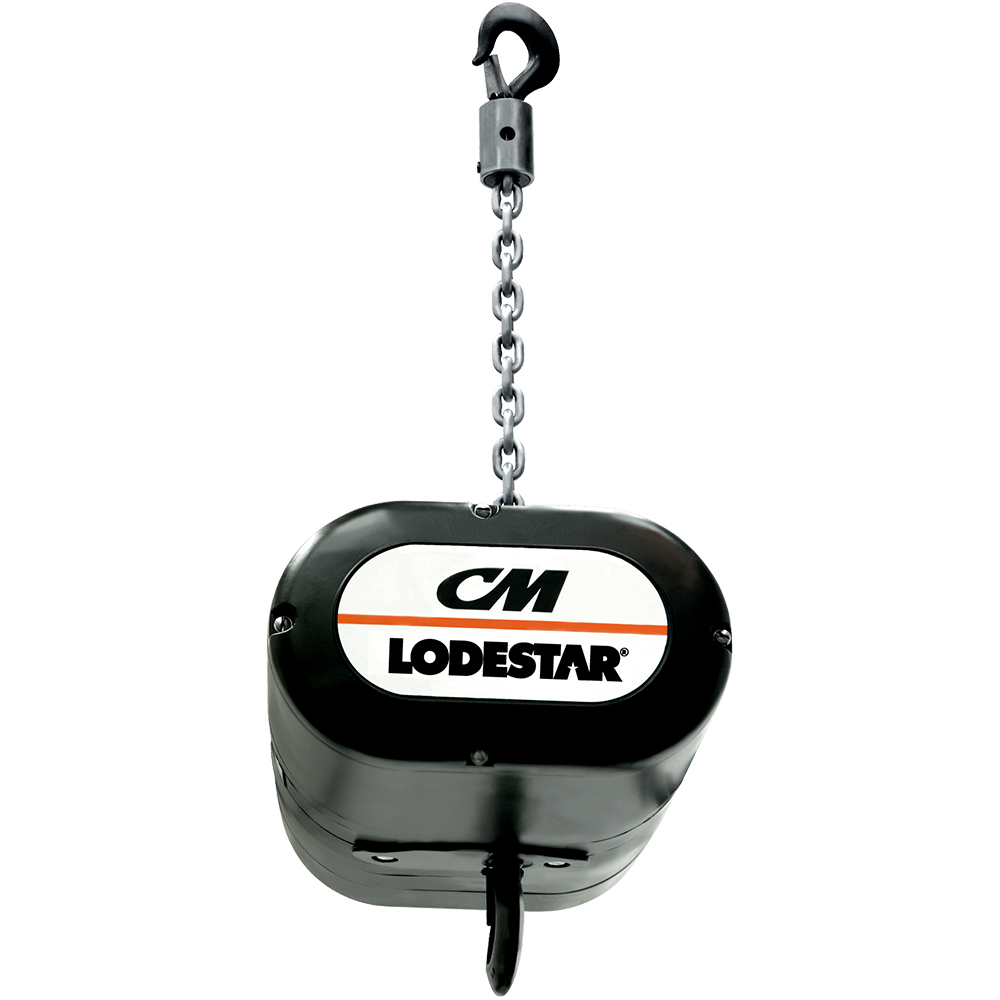

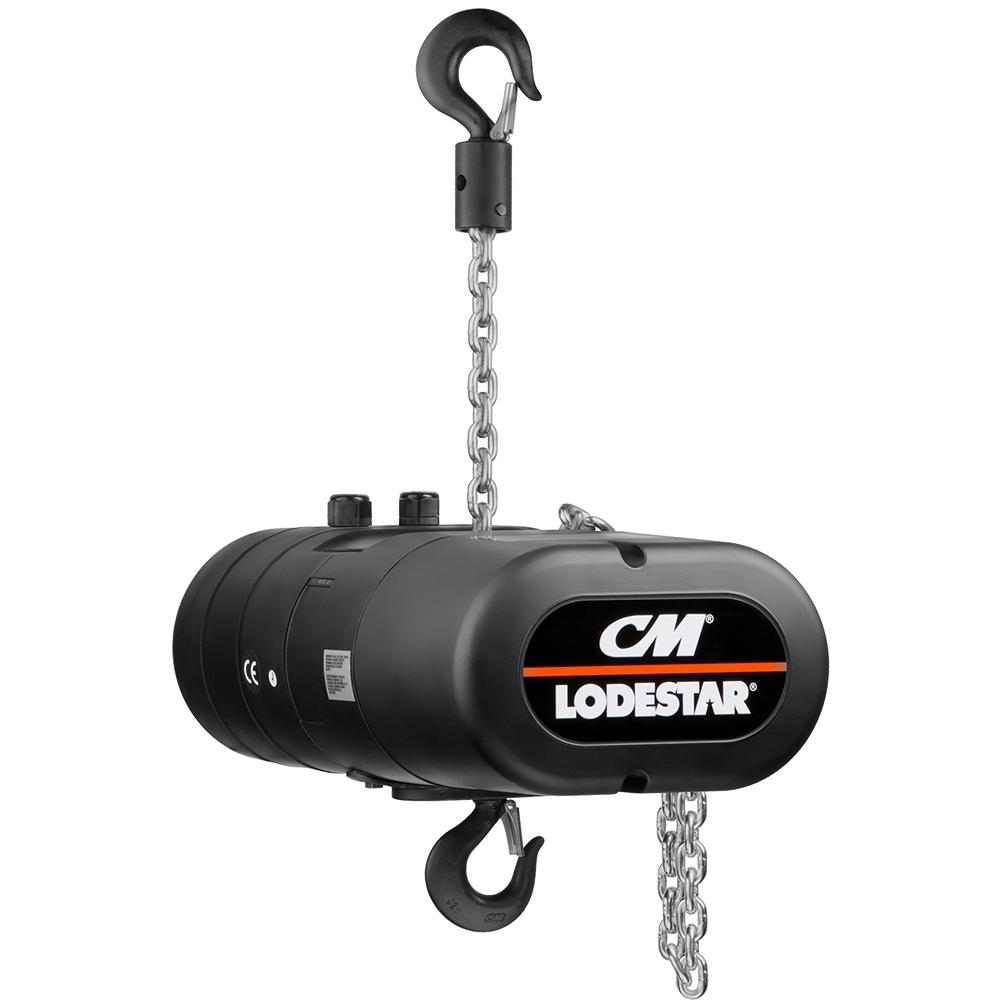

Electric Chain Motor

Details

The legendary CM-ET Lodestar Classic electric chain motor is back for a command performance. Leading the entertainment industry for more than three decades, this workhorse offers best-in-class performance, safety and reliability. The Lodestar Classic is universally trusted by rigging professionals around the world and is ideal for touring concerts and productions both indoors and out.

SPECIFICATIONS
Capacities1/8 to 2 tons (Metric Rated)
Lift60 ft. (other lifts available)
Speeds8 to 64 F.P.M. at 60 Hz.
Voltages1-phase and 3-phase available
MISC
Proven Brake DesignAC electromechanical brake has been field tested in more than one million Lodestars worldwide.
Low Voltage Control110 Volt for long cable runs without voltage drop. 24 and 48 Volt optional.
Lightweight, Cast Aluminum HousingDurable and strong cast-aluminum housing is black powder coated for low visibility.
Smooth-Operating GearingHelical and spur gears designed for long wear life and smooth operation.
Load-Tested, Zinc Plated ChainDesigned and manufactured by CMCO, chain is made in America and zinc plated to protect against corrosion. Optional black finish available.
H4-Duty RatedDesigned for heavy-duty applications.
Safe & Quick Voltage ChangeFinger safe wiring and quick-change plug and play connectors allow for easy voltage change from 208 to 460. Prevents improper voltage connections that may cause hoist damage.
Over-Travel PreventionAdjustable Limit Switch prevents load from over-travel in both up and down directions.
Overload ProtectionHelps prevent lifting of dangerous loads.
Meets RequirementsMeets or exceeds world standards.
