Motion Drape.
L.E.D. Backdrop
Details

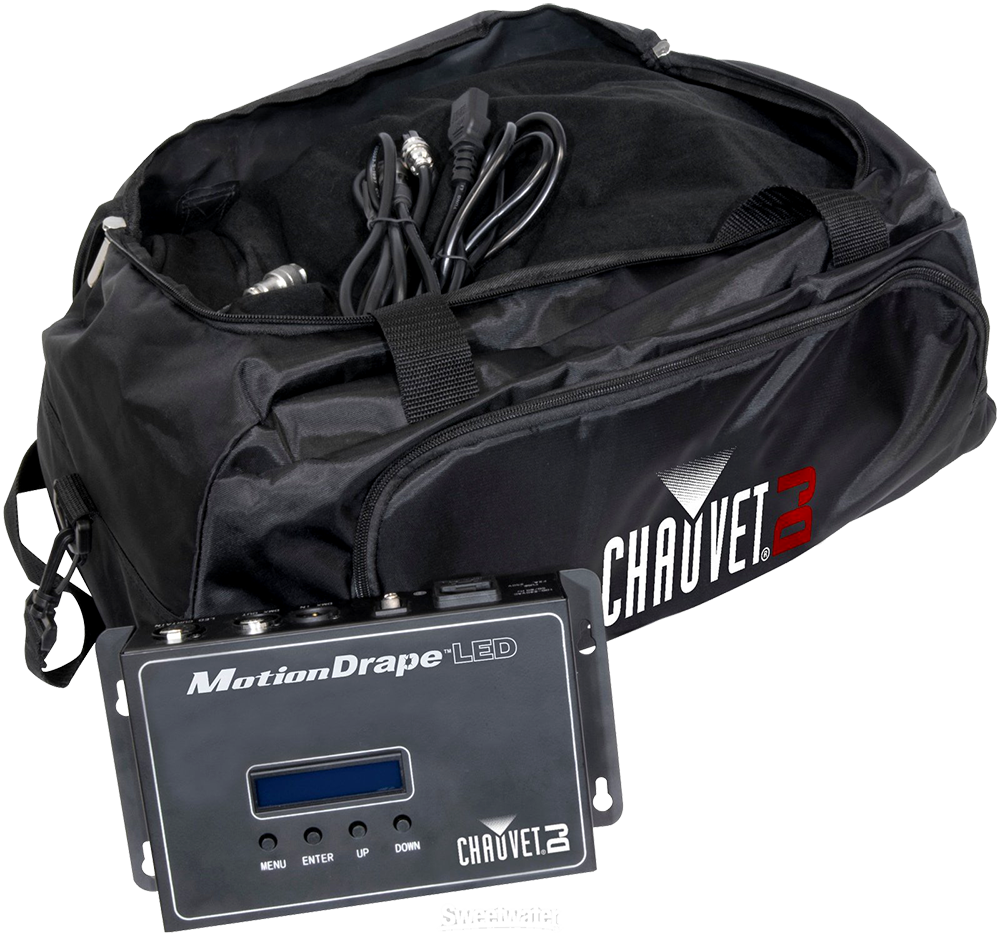

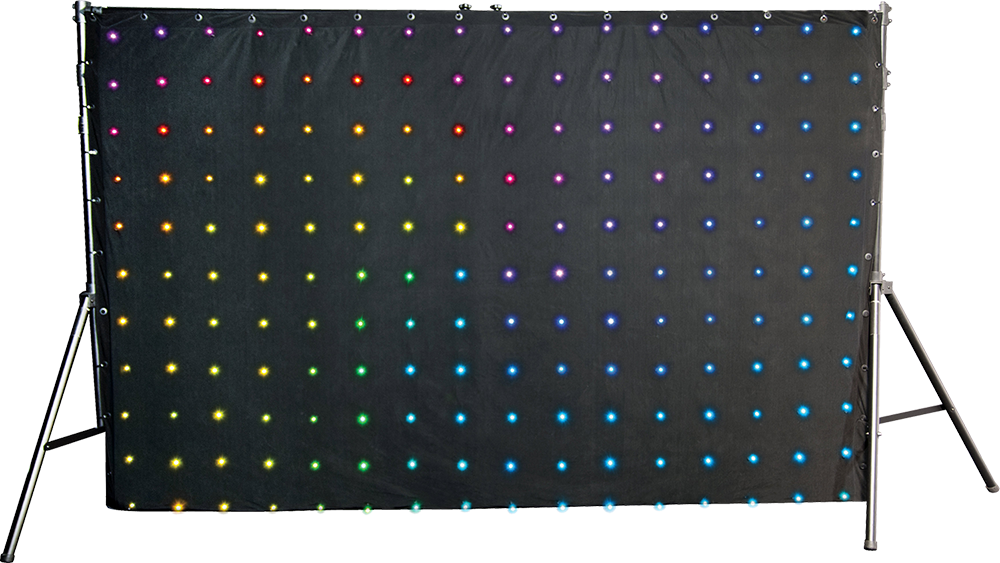

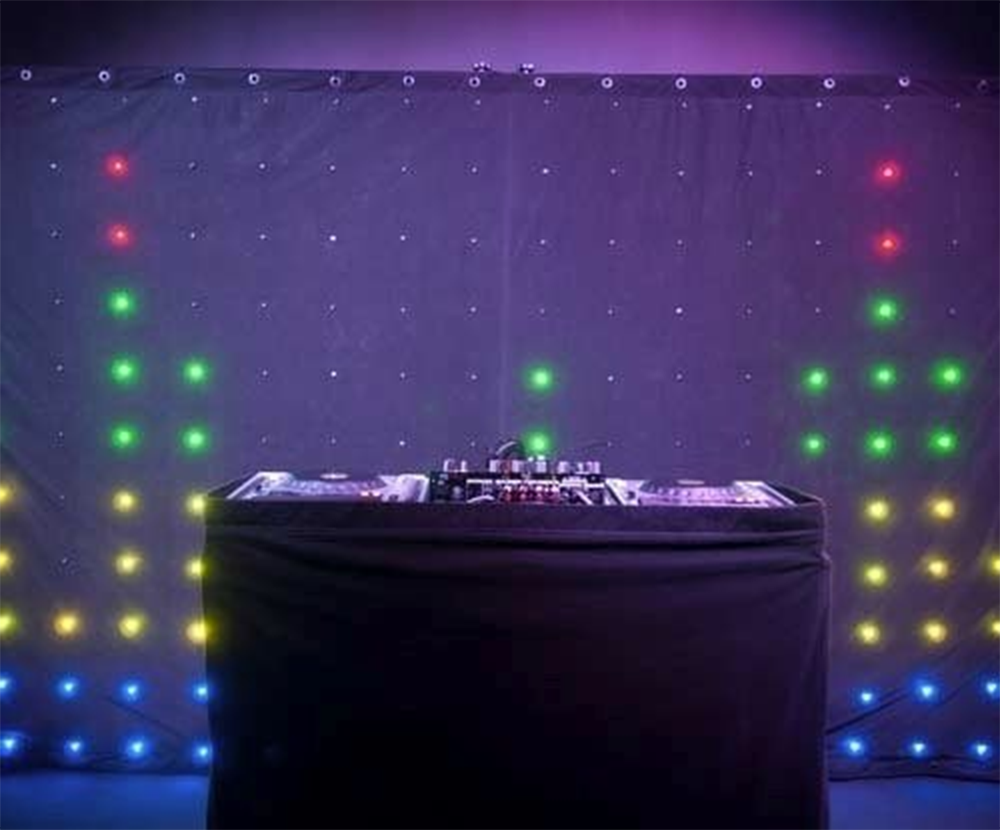

LED drape with motion graphics is perfect for DJ back drops & more! The MotionDrape LED is a backdrop for any mobile performer. 176 tri-color SMD LEDs matrixed across the 6.5ft by 9.8ft backdrop and can be controlled via the included controller or via DMX. This impressive display has 30 animated effects that range from color fades to a graphic equalizer effect.
FEATURES
- 2 X 3 meter LED drape with motion graphics perfect for DJ back drops
- New high output tri-color SMD LEDs
- 30 exciting patterns that will wow your audience
- Fantastic multi-color rain effect, and simulated equalizer pattern included
- Equipped with a sound activation mode to trigger your MotionDrape™ LED

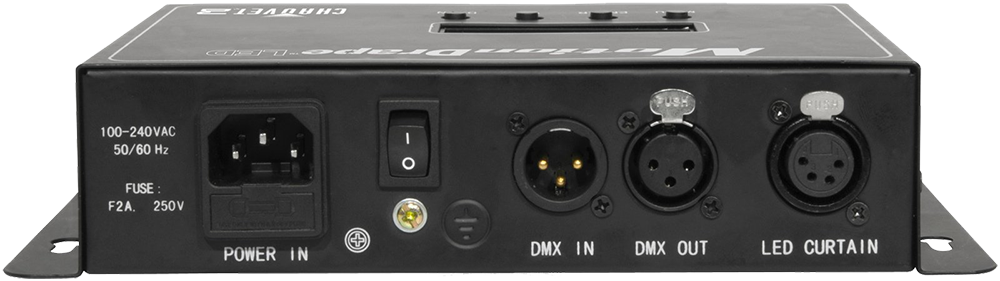

- Choose & run your favorite program with or without a DMX-512 console
- 8 channels of DMX control to customize your own show
- Full RGB color mixing capability to match your events color scheme
- Master Dimming capability giving you full control over your output
- Grommets for easy truss mounting and various stand applications
- Free carry bag makes storage and transport a breeze
- Great for DJ’s, bands, clubs and stages
- Certified fire retardant material
SPECIFICATIONS
| DMX channels | 8 |
| DMX connectors | 3-pin |
| Light source | 176 tri-color SMD LEDs |
| Input voltage | auto-ranging 100-240VAC 50/60Hz |
| Power and current | 51W, 0.4A @ 120V 60Hz |
| Power and current | 54W, 0.2A @ 230V 50Hz |
| Size (controller) | 5.3 x 9.6 x 2 in |
| Size (drape) | 6.6 x 9.8 ft |
| Approvals | CE |
| Weight (controller) | 1.8 lbs |
| Weight (drape) | 9.8 lbs |
| Shipping Weight (dimensional packaging) | 28 lbs |
GENERAL
| DMX Channels | 4 or 8 |
| DMX Connectors | 3-pin XLR |
| Light Source | 180 LEDs (39 red, 39 green, 51 blue, 51 amber) 0.25 W (20 mA), 100,000 hours life expectancy |
| Strobe Rate | 0 to 22 Hz • Beam Angle: 14° |
| Field Angle | 23° |
| Illuminance | 1,325 lux @ 2 m |
| Maximum Run Time (all on) | up to 8 hours |
| Maximum Run Time (single color) | up to 20 hours |
| Recharge Time | 6 hours |
| Power Linking | 55 units @ 120 V, 85 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 33 W, 0.3 A @ 120 V, 60 Hz |
| Power and Current | 35 W, 0.2 A @ 230 V, 50 Hz |
| Weight | 4 lb (1.9 kg) |
