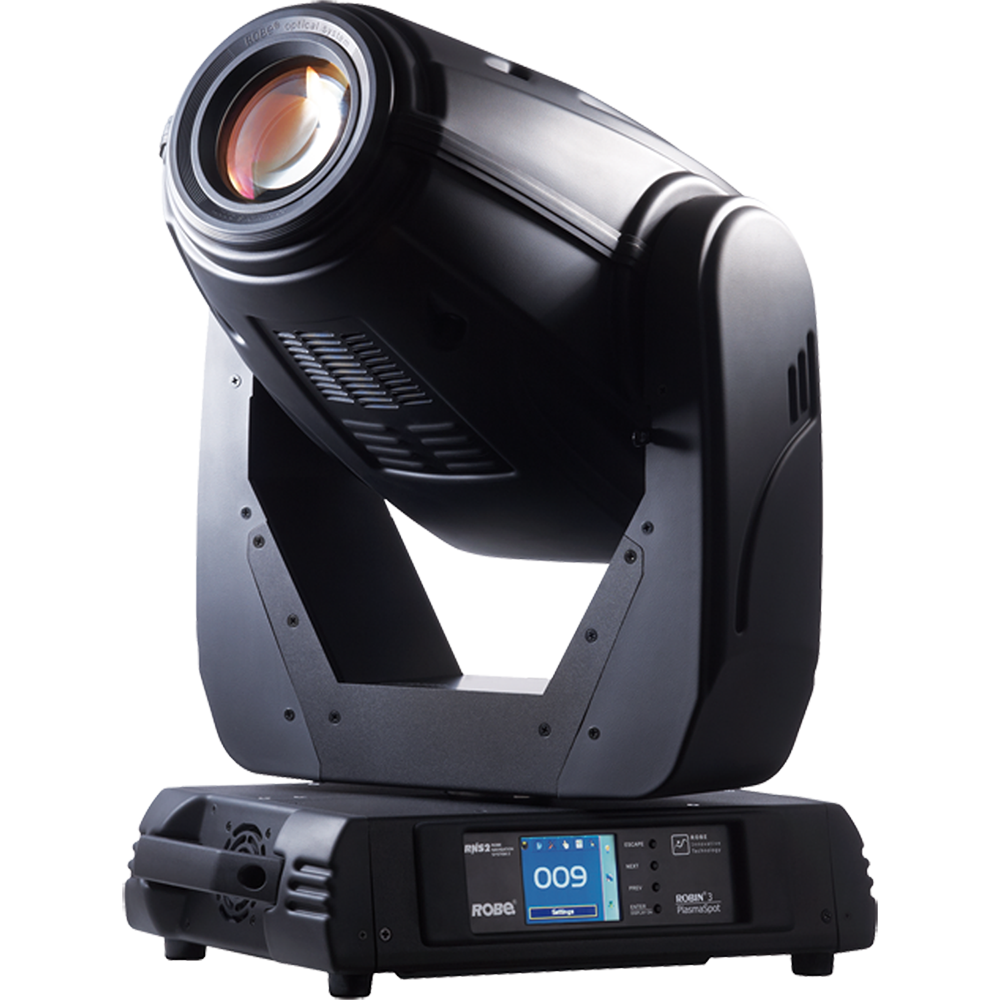

Robin 300 Plasma Spot.
Moving Spot Fixture
Details
The amazing ROBIN® 300 Plasma Spot Light is the first in a unique and new era of plasma lamp based fixtures from Robe. Robin 300 Plasma Spot light is the first in a new generation of fixtures we have all been dreaming about! A perfect colour rendering index (CRI = 94), an extremely flat and even light beam (1:1.5) and a lifespan of 10.000 hours – all these fantastic features exist thanks to a brand new light source – the plasma lamp, which is now being introduced to the market. Moreover, the new plasma lamp source offers a dimming capability from 20–100% and a semi-hot restrike function (less than 120 sec. for full lamp brightness after shutting off).
SOURCE
| Lamp | Plasma source |
| Approved model | Lifi ENT 31-02, 266 W, Luminous Flux 18.000 Lm, CCT 5.400 K, CRI=94, lamp life 10.000 Hrs |
| Control | Automatic and remote on/off |
OPTICAL SYSTEM
| Beam angle | 10° – 40° |
ELECTRICAL SPECIFICATION
| Power supply | Electronic auto-ranging |
| Input voltage range | 100–240 V, 50/60 Hz |
| Power consumption | 390 VA at 230 V/50 Hz |
MECHANICAL SPECIFICATION
| Height | 516 mm (20.3″) – head in horizontal position |
| Width | 433 mm (17.0″) |
| Depth | 470 mm (18.5″) |
| Weight | 21 kg (46.3 lbs) |
THERMAL
| Maximum ambient temperature | 40 °C (104 °F) |
| Maximum surface temperature | 80 °C (176 °F) |
STATIC GOBOS
| Metal gobos - outside diameter | 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm |
ROTATING GOBOS
| Glass gobos - outside diameter | 26.8 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass |
CONTROL & PROGRAMMING
| Setting & Addressing | ROBE Navigation System 2 (RNS2) |
| Protocol | USITT DMX-512, RDM, ArtNet, MA Net, MA Net2 |
| Control channels | 22, 24, 31 |
ELECTROMECHANICAL EFFECTS
| Cyan | 0-100% |
| Magenta | 0-100% |
| Yellow | 0-100% |
| CTO | 0-100% |
| Colour wheel | 5 replaceable ″SLOT&LOCK″ colours + open |
| Effect wheel | Beam shaper rotatable 360° and indexable, frost effect |
| Dimmer/Shutter | Full range dimming and variable strobe effect |
| Zoom | 12° - 34° standard, 24° - 60° or 87° with an optional lenses supplied on request |
| Pan | 530° |
| Tilt | 280° |
- 3 DMX protocol modes
- 3-editable programs, each up to 100 steps
- Stand-alone operation
- Optional wireless version available: CRMX™ technology from Lumen Radio
DISPLAY
| Pan/Tilt resolution | 16bit |
| Movement control | Tracking and vector |
| Colour wheel positioning | 8 or 16bit |
| Static gobo wheel positioning | 8 or 16bit |
| Rotating gobos | 8 or 16bit |
| Iris | 8 or 16bit |
| Frost | 8bit |
| Focus | 8 or 16bit |
| Dimmer | 8 or 16bit |
| Ethernet port | Art-Net protocol, ready for ACN |
| Data in/out | Locking 3-pin & 5-pin XLR |
- QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
- Built-in analyzer for easy fault finding
ELECTROMECHANICAL FFFECTS
| Cyan | 0–100% |
| Magenta | 0–100% |
| Yellow | 0–100% |
| CTO | 0–100% |
| Colour wheel | 7 replaceable ″SLOT&LOCK″ dichroic filters + open, trapezoid shape |
| Static Gobo wheel | 9 replaceable ″SLOT&LOCK″ metal gobos + open |
| Rotating Gobo wheel | 7 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic and black and white glass gobos + open |
| Iris | Motorized, stepless, up to 3 Hz |
| Prism | 3-facet 11° indexable prism rotating in both directions at different speeds |
| Frost effect | separate, variable |
| Dimmer/Shutter | Full range dimming and variable strobe effect, Electronic strobing ″ZAP″, Motorized zoom and focus |
| Pan | 540° |
| Tilt | 280° |
RIGGING
| Mounting points | 2 pairs of ¼-turn locks |
| Fixation option | Pan/Tilt-lock mechanism |
- 2 x Omega bracket with ¼-turn quick locks
- Safety chain/rope attachment point
