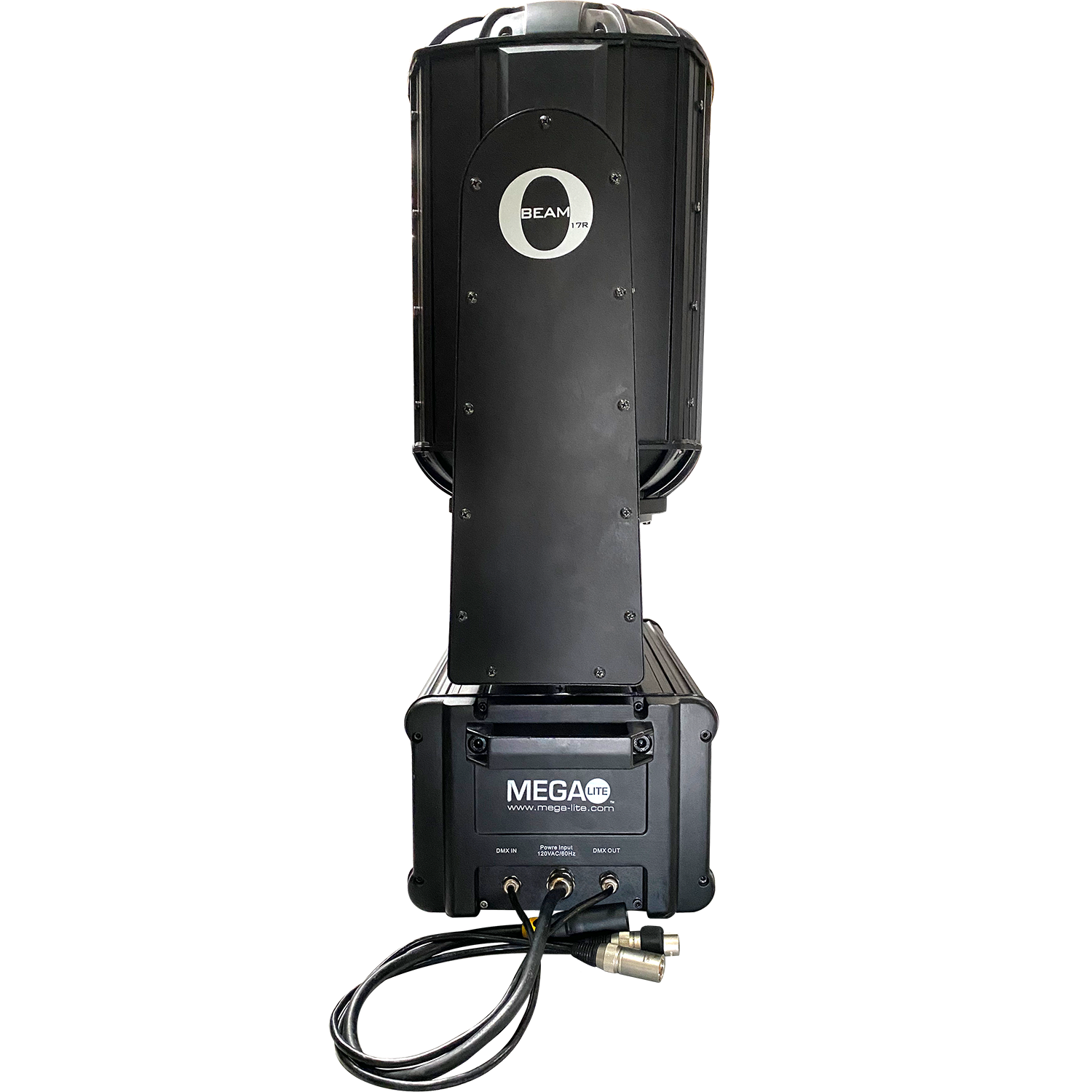

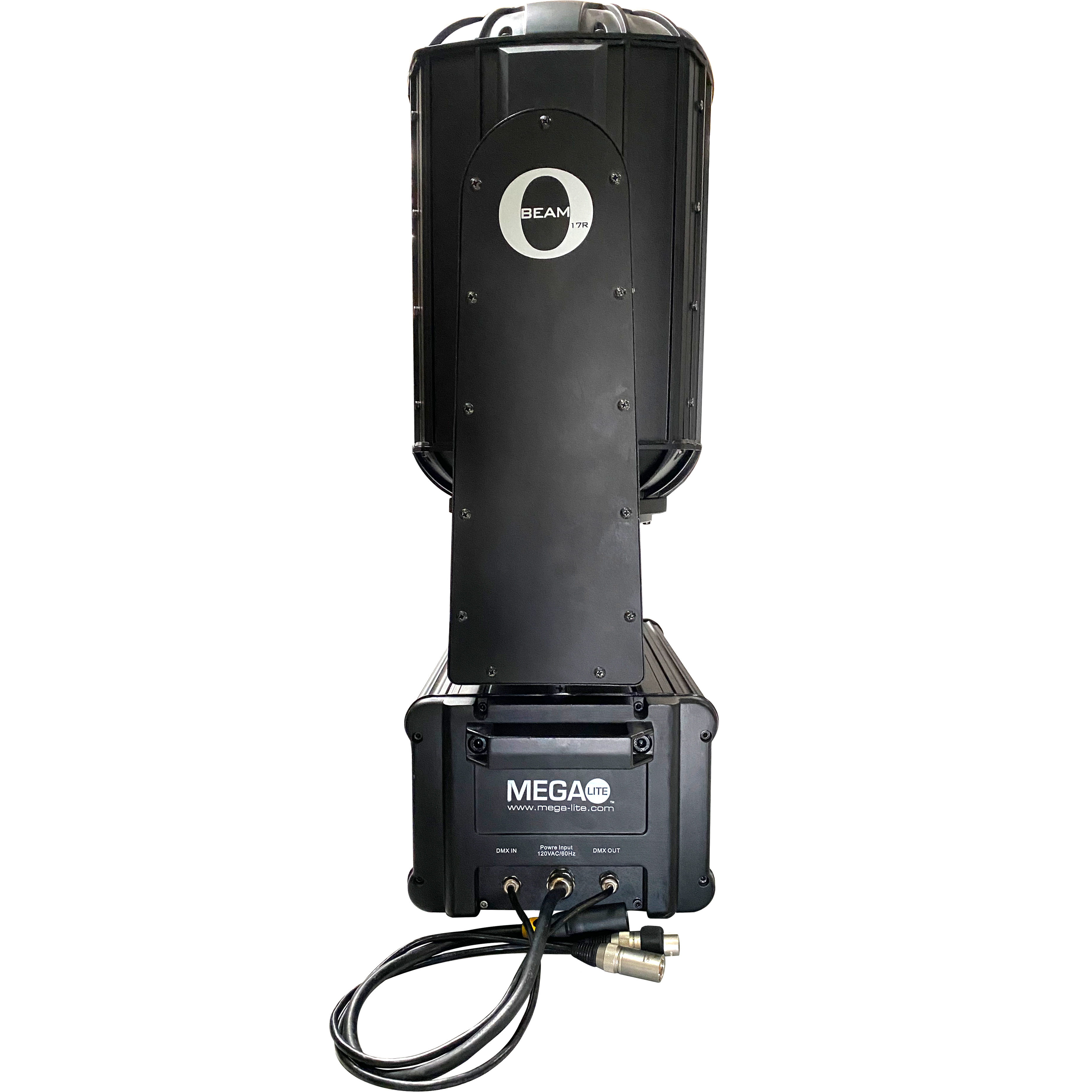

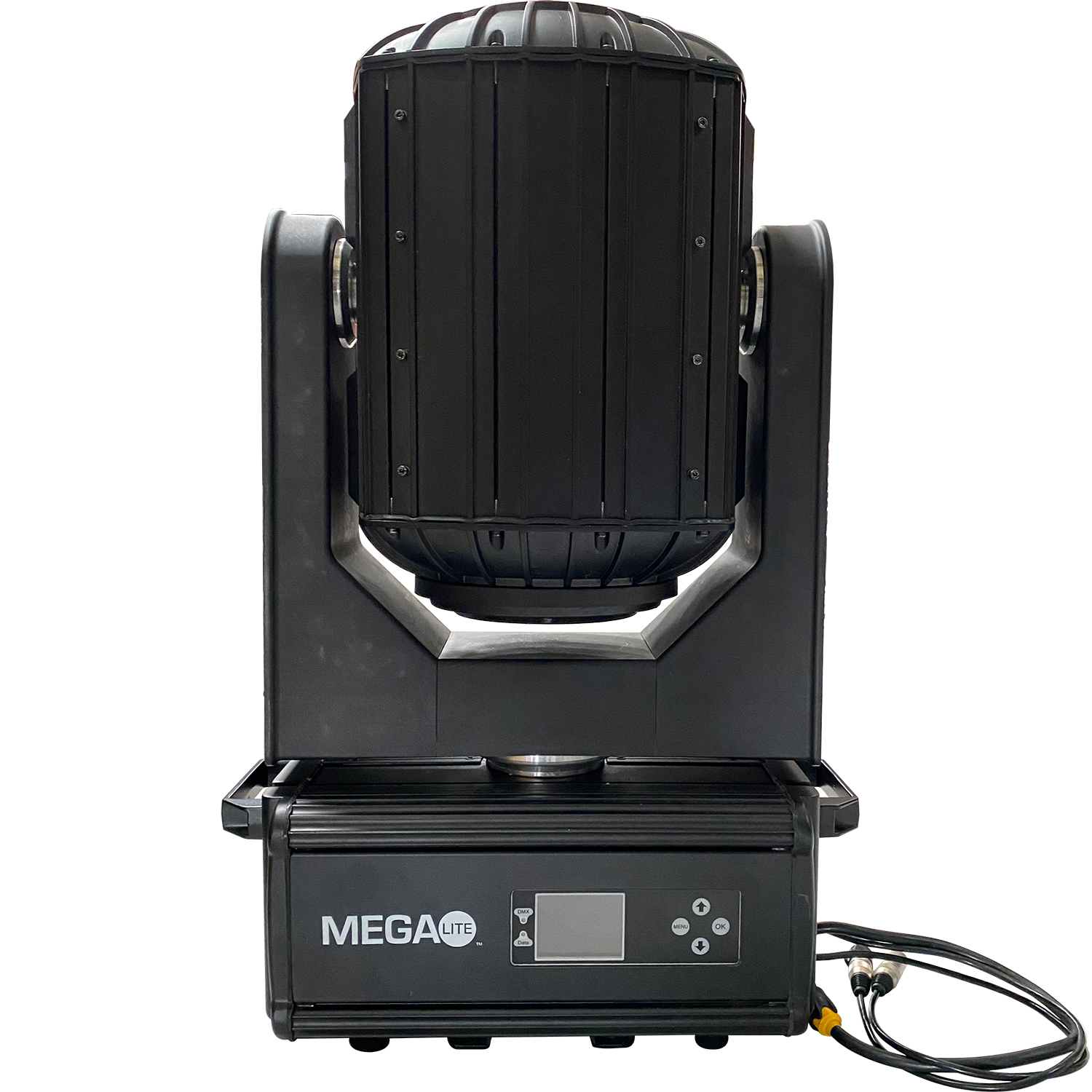

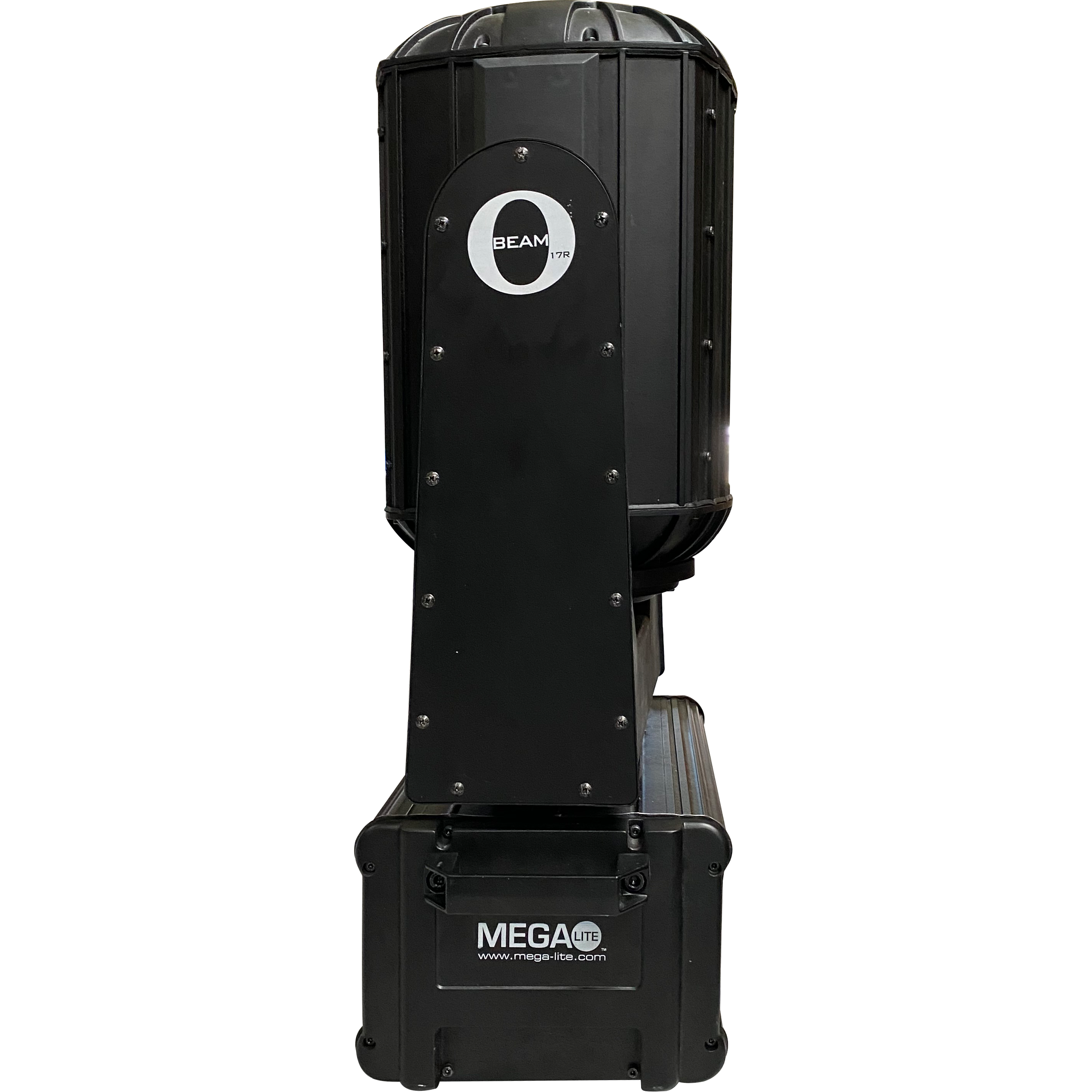

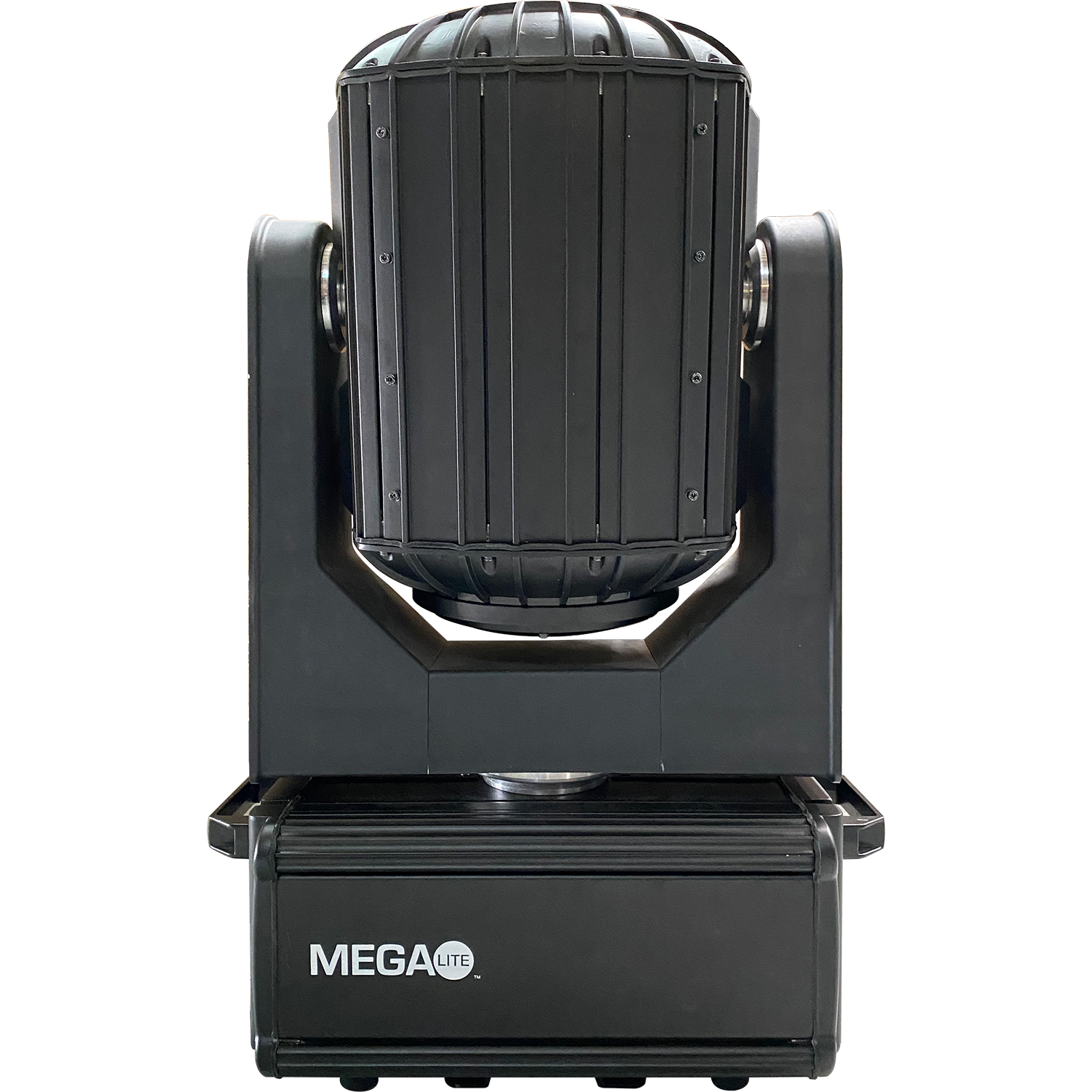

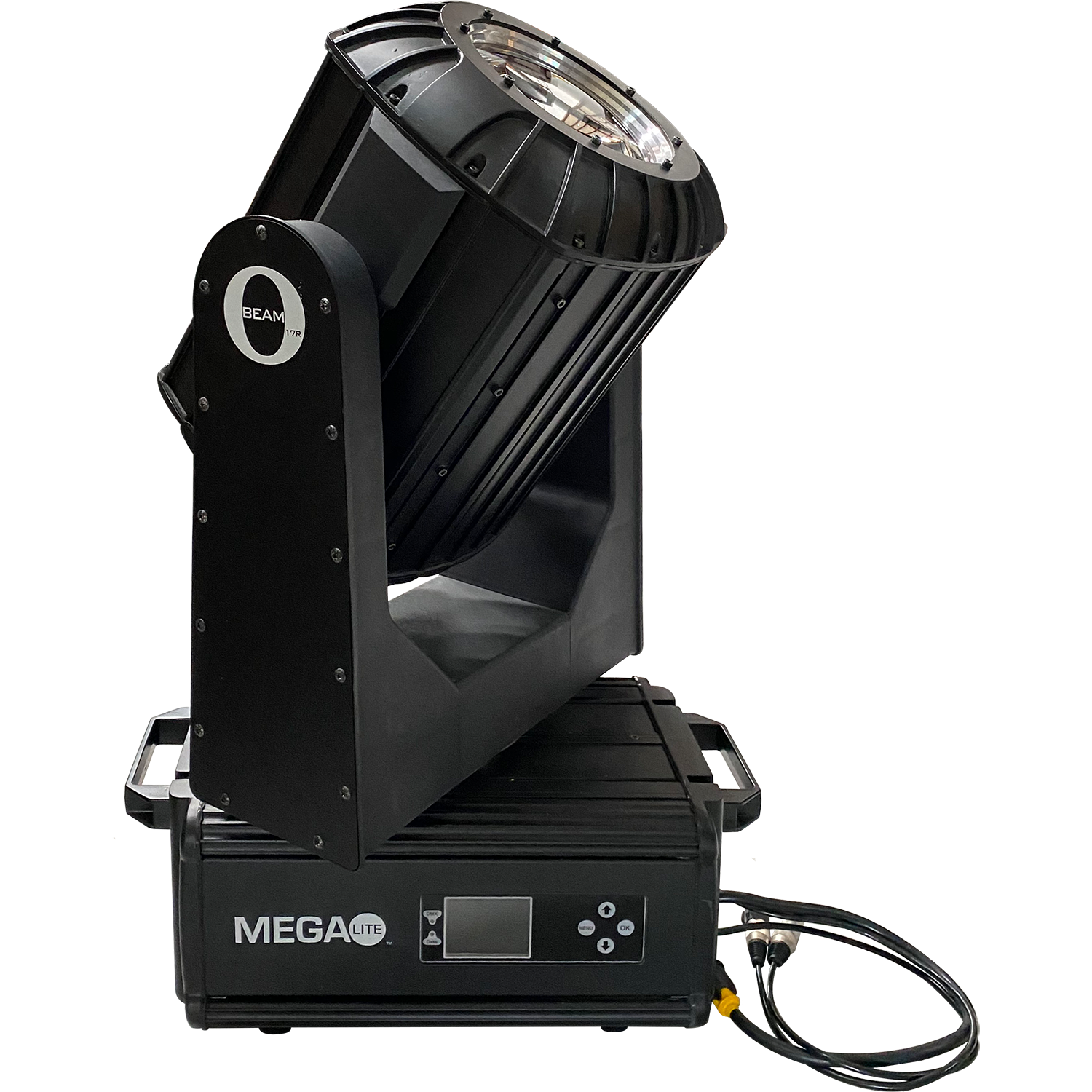

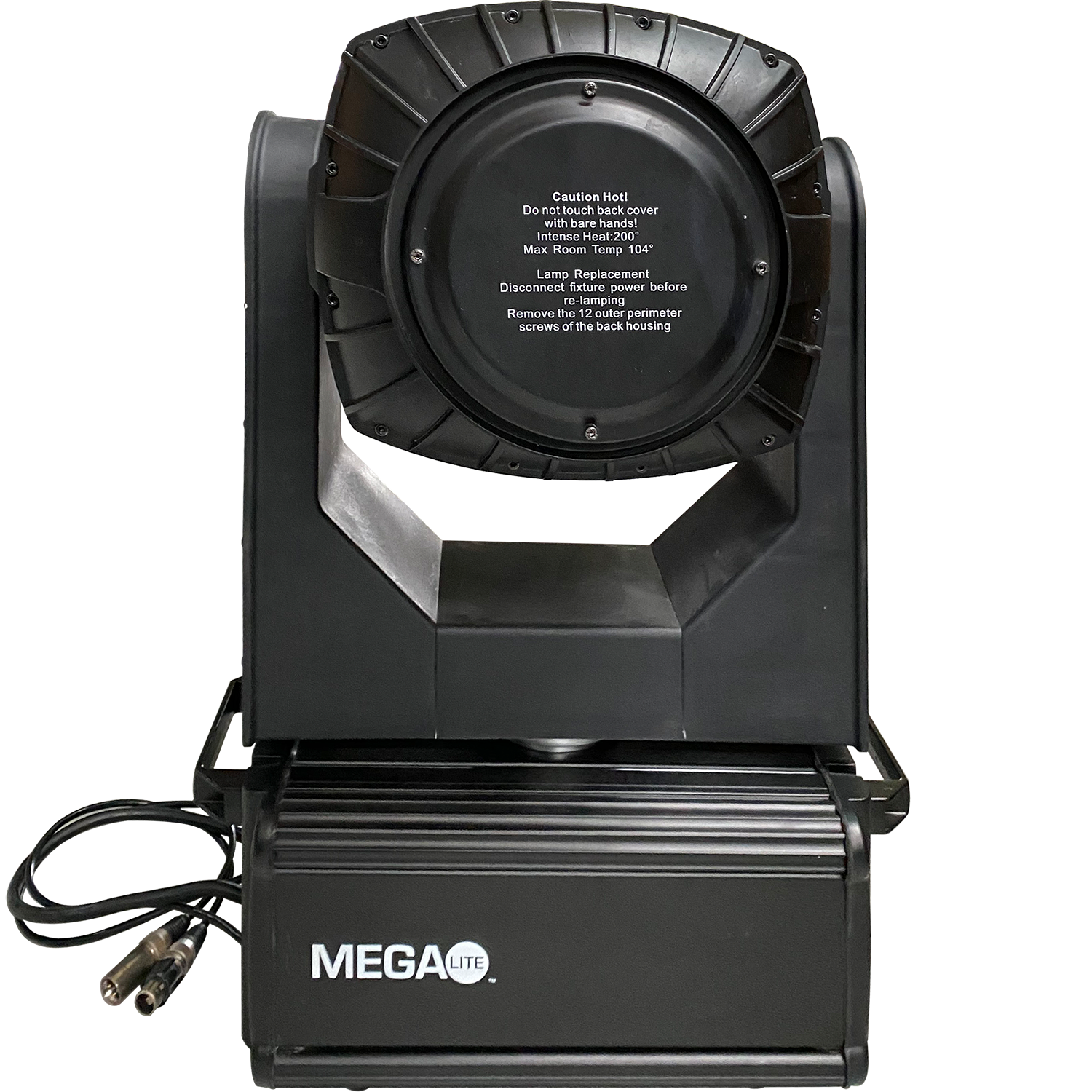

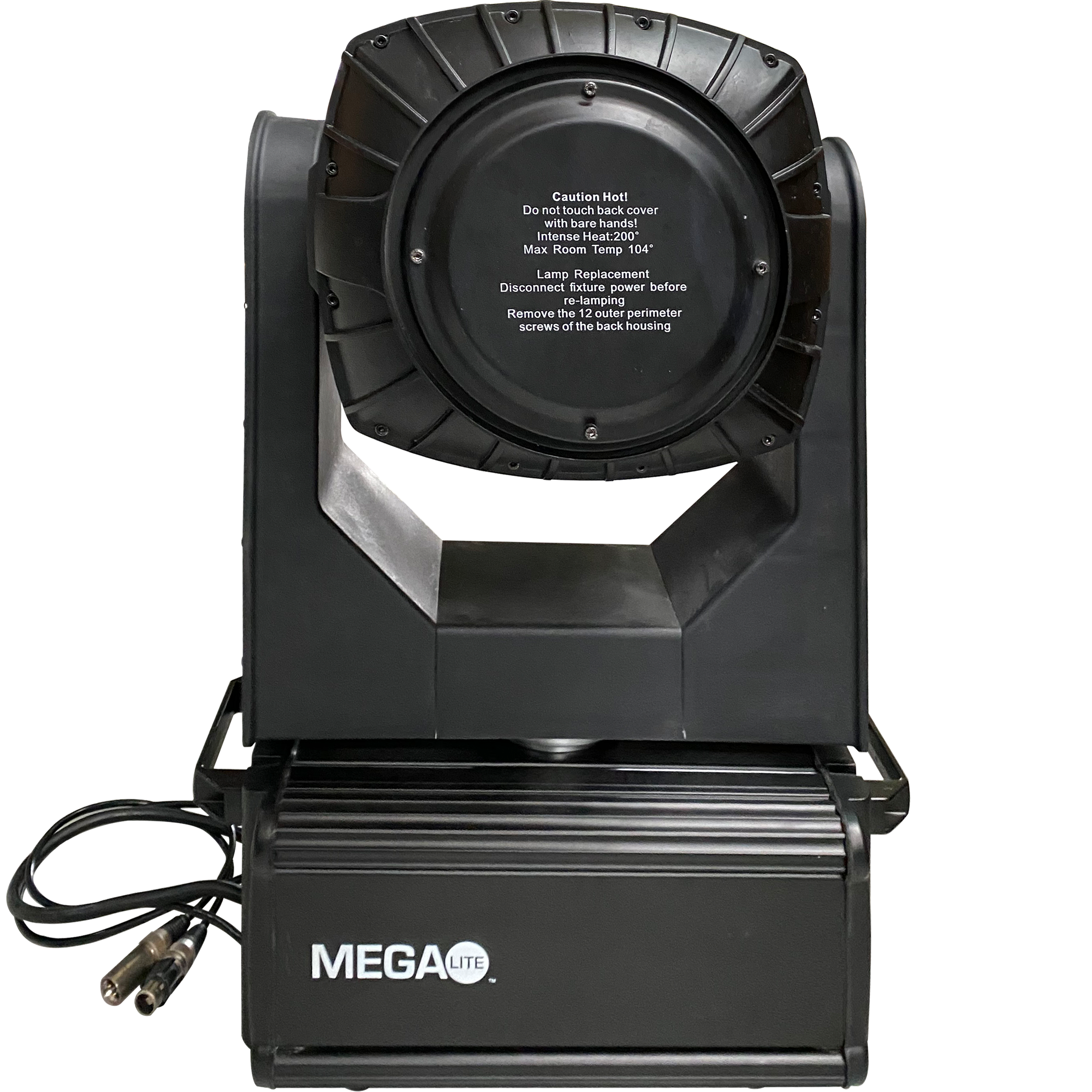

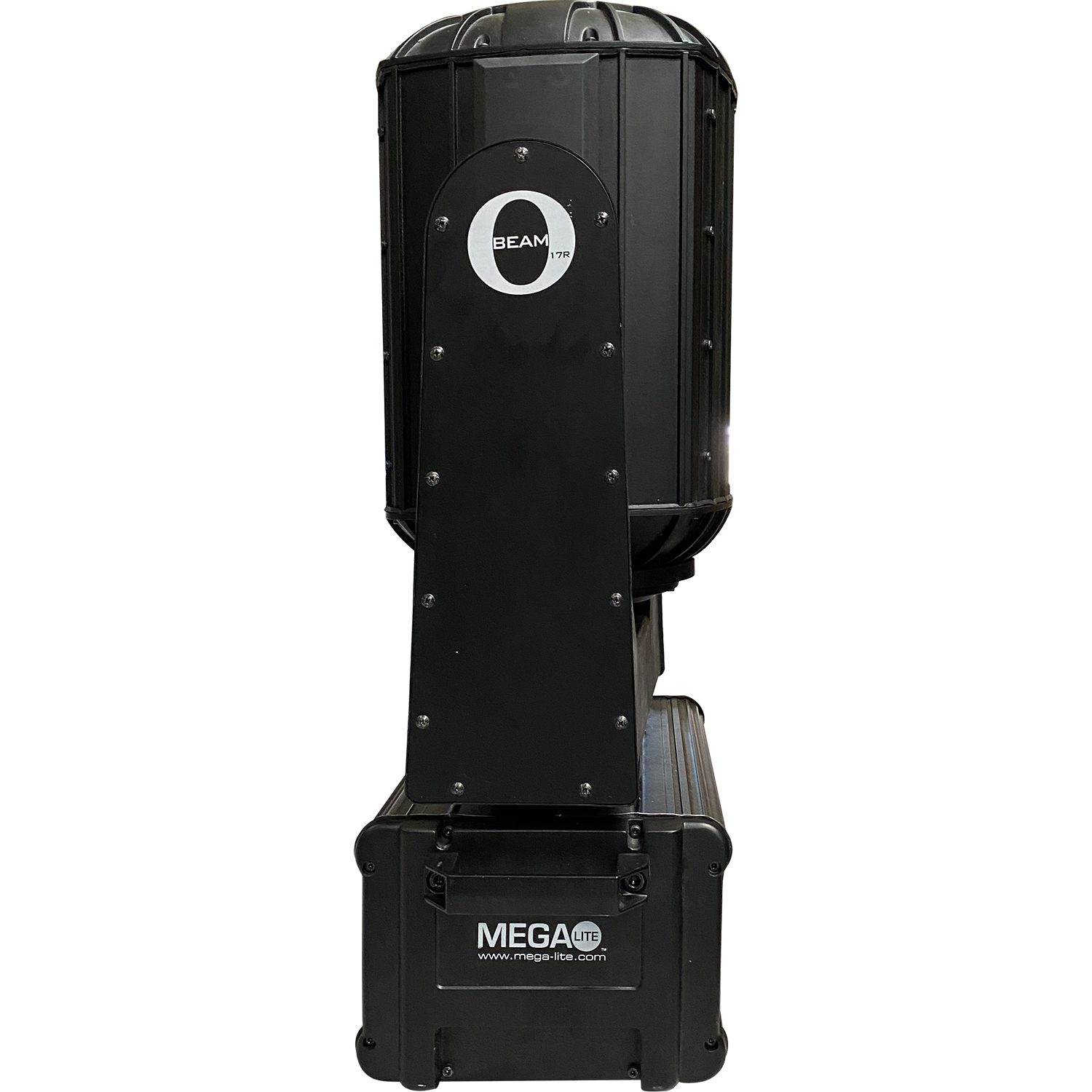

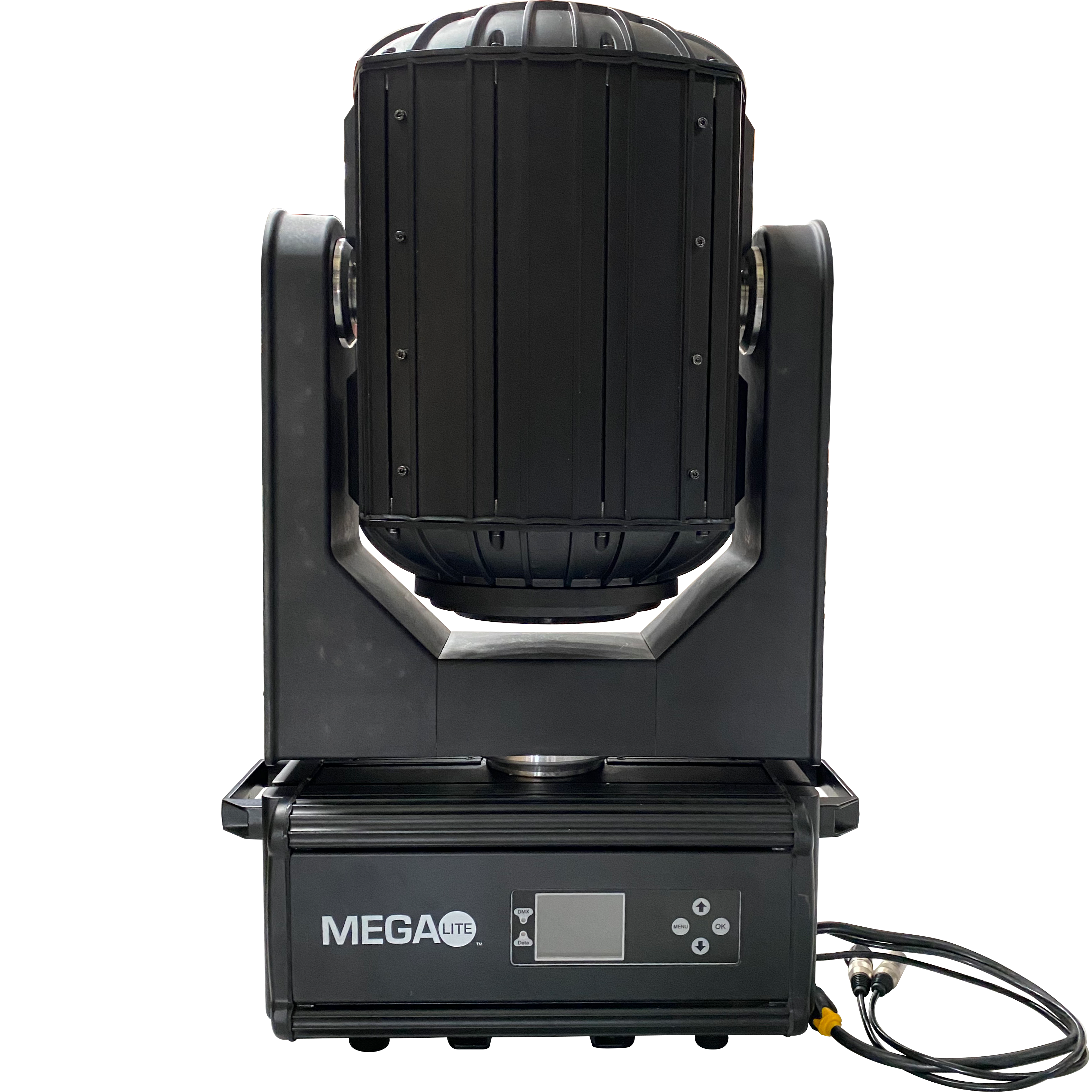

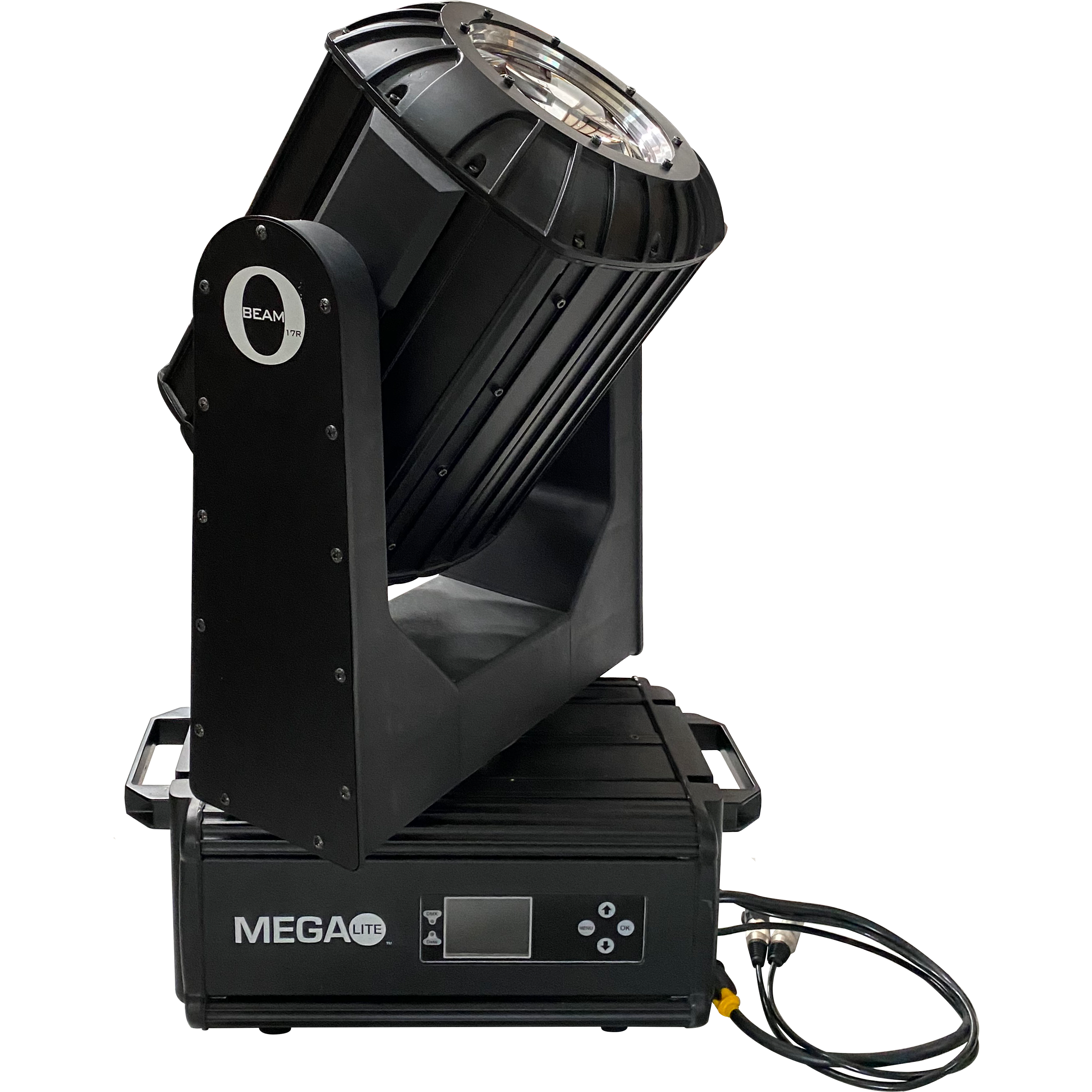

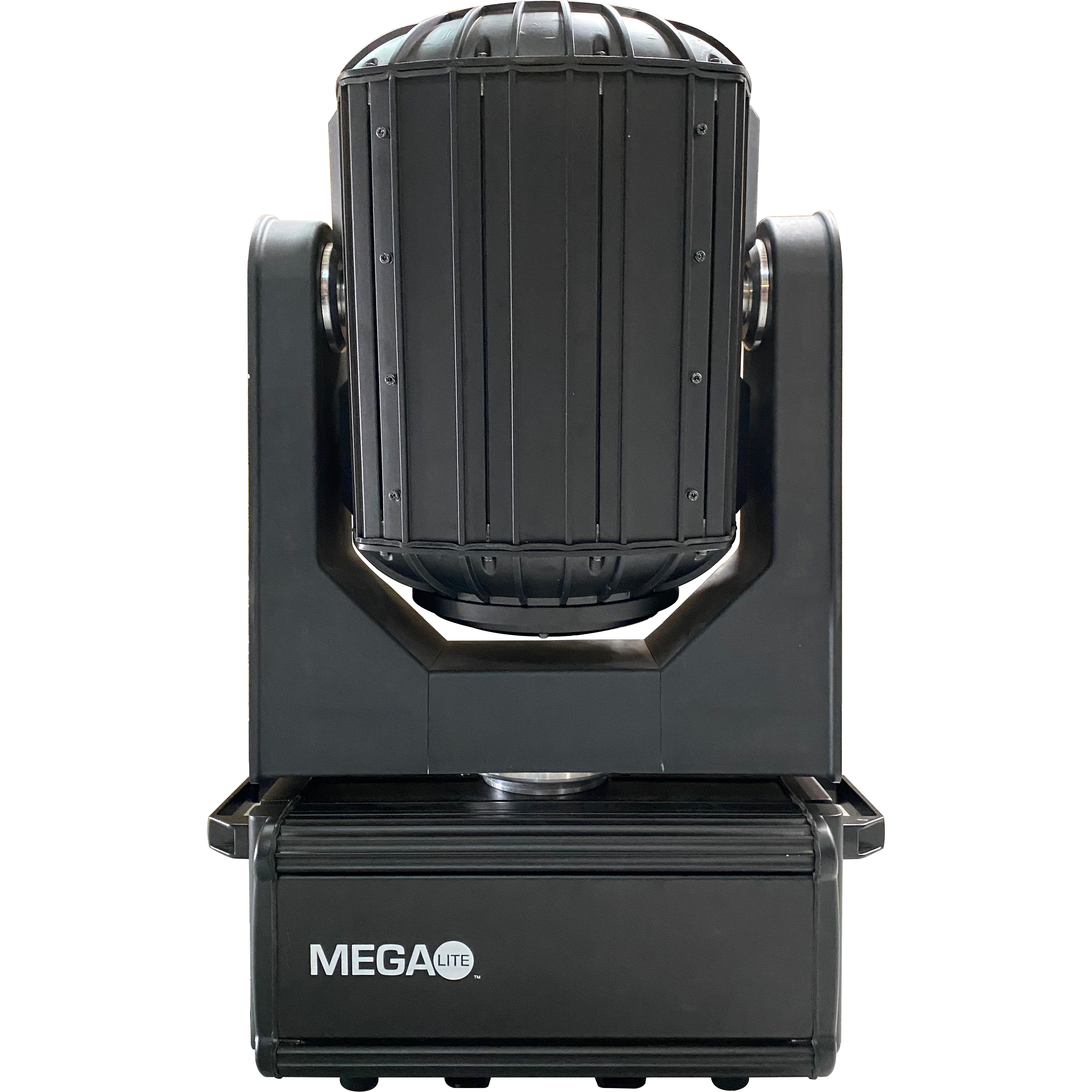

O Beam 17R.
Movable Beam Fixture
Details
The O Beam 17R was designed for temporary outdoor usage. The fixture is rugged enough to withstand varying weather conditions while still emitting a powerful beam perfect for enhancing any permanent architectural installation or entertainment installation. The O Beam 17R is equipped with an 8-facet prism, a color wheel, and a static gobo wheel. The built-in frost filter allows for
an even wash of the beam.
SPECIFICATIONS
| FIXTURE | 1300 O Beam 17R |
| LAMP | 1 7R Lamp 330W |
| POWER CONNECTION | Weather Seal Screw Type (Screw Type to Nema 5-15 adapter included) |
| IP RATING | IP 44 |
| DMX CONNECTION | Cable Mounted 3-pin XLR Connectors |
| THERMAL | Maximum ambient temperature 100° | Maximum surface temperature 130° |
| PAN ANGLE | 540º 8/16 Bit |
| TILT ANGLE | 270º 8/16 Bit |
| FASTENING SYSTEM | 2 Quick Release Clamp Mounts |
| POWER SUPPLY | Auto Switch 100V-240V 50/60Hz |
| POWER CONSUMPTION | 3.65 Amps / 440 Watts |
| PRISM | 8-Facet Prism Rotating in Both Directions at Different Speeds |
| DIMMER | Dual Blade Dimming |
| SHUTTER | Mechanical Shutter Strobe of Lamp 13 Flash Per Second |
| FROST | Mechanical Frost Effect |
| FOCUS | Mechanical Focus |
| GOBO | 17+Open Bi-directional Rotation |
| COLOR | 14+Open Bi-directional Rotation |
| COLOR TEMP | 8000K |
| DISPLAY | LCD Display |
DIMENSIONS
| Size (D:W:H) | 10.33’’ x 18.75’’ x 28.50’’ |
| Weight | 64 lb |
